Trio Australia Lift Off Universal 100X74X3.0MM Ss R1-WLO7165
See more by Door Hinges

Trio Australia Lift Off Universal 100X74X3.0MM Ss R1-WLO7165

SKU: R1-WLO7165
: 9328879113845

$20.33

In stock
Trio Australia Lift Off Universal 100X74X3.0MM Ss R1-WLO7165

$20.33

$20.33

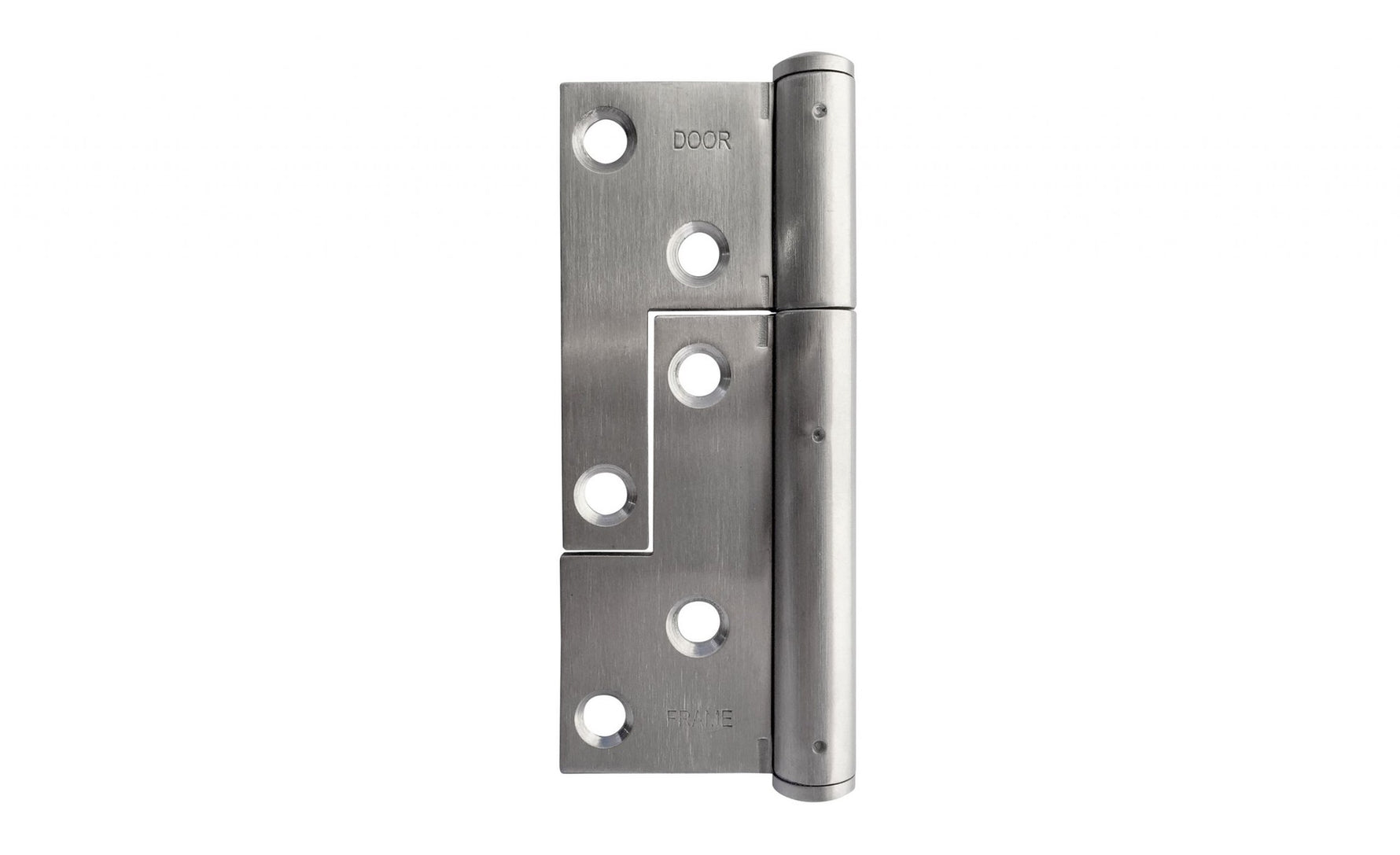

A single, non-handed lift-off hinge that suits both left- and right-hand doors. Trio: “This lift off hinge is non-handed meaning no Left or Right hand orientation is needed to determine the lift off door application. The hinge is stamped with references of where to fix onto the frame or door.”

Key Features

  • Non-handed – one part number covers both hands, halving stock lines
  • Leaves stamped with frame and door fixing references so it cannot be fitted the wrong way round
  • The door lifts off without unscrewing the hinge
  • 3.0mm heavy gauge
  • Offered in satin stainless and zinc plated

Technical Specifications

Variant Universal, non-handed
Finish Satin Stainless Steel (SSS)
Size 100 x 43 x 3.0mm
Size note Size discrepancy. Your item name gives 100 x 74 x 3mm, but Trio publishes 100 x 43 x 3.0mm in both its description string and its Specifications block for this code. Trio's stated convention is that sizes are “measured as the overall width laying down flat”, and 43mm reads as a single-leaf rather than a flat-open measurement – so one of the two figures is a Trio data error. Trio's published figure is used here; please confirm with Trio.
Material grade Not published
Pack quantities Not published
Range REVIVE Universal Lift Off
Pin type Lift off
Handing Universal / non-handed
Material thickness 3.0mm
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 43 x 3.0 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879113845
Description

A single, non-handed lift-off hinge that suits both left- and right-hand doors. Trio: “This lift off hinge is non-handed meaning no Left or Right hand orientation is needed to determine the lift off door application. The hinge is stamped with references of where to fix onto the frame or door.”

Key Features

  • Non-handed – one part number covers both hands, halving stock lines
  • Leaves stamped with frame and door fixing references so it cannot be fitted the wrong way round
  • The door lifts off without unscrewing the hinge
  • 3.0mm heavy gauge
  • Offered in satin stainless and zinc plated

Technical Specifications

Variant Universal, non-handed
Finish Satin Stainless Steel (SSS)
Size 100 x 43 x 3.0mm
Size note Size discrepancy. Your item name gives 100 x 74 x 3mm, but Trio publishes 100 x 43 x 3.0mm in both its description string and its Specifications block for this code. Trio's stated convention is that sizes are “measured as the overall width laying down flat”, and 43mm reads as a single-leaf rather than a flat-open measurement – so one of the two figures is a Trio data error. Trio's published figure is used here; please confirm with Trio.
Material grade Not published
Pack quantities Not published
Range REVIVE Universal Lift Off
Pin type Lift off
Handing Universal / non-handed
Material thickness 3.0mm
Code legend F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack Trade Pack
Door weight rating Not published
Weight / packed dimensions Not published
Dimensions recorded 100 x 43 x 3.0 mm
Dimension basis Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN 9328879113845
