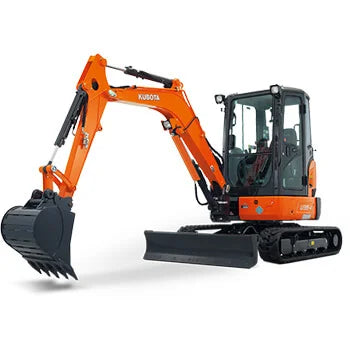

EXCAVATOR 3.5T

(0)
SKU: EX 3.5T BD

$440.00

Attachment: Bucket Driver
Duration: 24 Hours
In stock

Overview

  • Name: U35-4
  • Type: Tier 4 Compliant
  • Fuel Type: Diesel
  • Cylinders: 3
  • Model: Kubota D1703M-DI-E4
  • Engine Net: 23.9 HP
  • Engine Gross: 24.8 HP
  • Displacement: 1647 cc
  • Rated Speed: 2200 rpm
  • Max. Traction Force: 2760 kgf
  • Tumbler Distance: 1670 mm
  • Crawler Length: 2090 mm
  • Shoe Width: 295 mm
  • Ground Contact Pressure - Canopy (Per cm2): 0.34 kgf
  • Ground Contact Pressure - Cab (Per cm2): 0.34 kgf
  • Hydraulic Pump Capacity: 39.6 x 2/ 20.9 x1 l/min
  • Aux Hydraulic Flow - AUX1: 60 l/min
  • Max. Breakout Force - Bucket: 2810 kgf
  • Max. Breakout Force - Arm: 1920 kgf
  • Swing System: Zero Tail Swing
  • Unit Swing Speed: 8.5 rpm
  • Boom Swing Angle Left: 70 degree
  • Boom Swing Angle Right: 48 degree
  • Travelling Speed Low: 3 km/h
  • Travelling Speed High: 4.6 km/h
  • Length: 4750 mm
  • Width: 1700 mm
  • Height - Canopy: 2480 mm
  • Height - Cab: 2470 mm
  • Min. Ground Clearance: 290 mm
  • Operating Weight - Canopy: 3850 kg
  • Operating Weight - Cab: 3996 kg
  • Max. Blade Width: 1700 mm
  • Blade Height: 340 mm
  • Max. Lift Above Ground: 370 mm
  • Max. Drop Below Ground: 370 mm
  • Fuel Reservoir: 45 l
  • Hydraulic Oil Reservoir: 36 l
  • Hydraulic Oil System: 61 l
  • Engine Oil: 5.3 l
  • Max. Digging Height: 4840 mm
  • Max. Dumping Height: 3400 mm
  • Max. Digging Depth: 3010 mm
  • Max. Vertical Digging Depth: 2010 mm
  • Max. Digging Radius At Ground: 5170 mm
  • Max. Digging Radius: 5280 mm
  • Min. Turning Radius - w/o Swing: 2220 mm
  • Min. Turning Radius - Swing: 1760 mm
  • Min. Tail Turning Radius: 900 mm

The 3.5 t excavator is suitable for a range of jobs. It has a great counterweight system with angle blade enabling effective use up against walls and in tight spots. Also features user friendly controls and a digital display.

AUGER DRIVER DIMENSIONS

Auger Flighting Thickness

8 mm

Auger Teeth

Forged

Auger Length

1.29 m

Min. Dirt Auger Size

6" (152mm)

Max. Dirt Auger Size

36" (914mm)

Min. Rock Auger Size

6" (152mm)

Max. Rock Auger Size

24" (610mm)

Short Auger Extension

24" (610mm)

Long Auger Extension

48" (1219mm)
Description

The 3.5 t excavator is suitable for a range of jobs. It has a great counterweight system with angle blade enabling effective use up against walls and in tight spots. Also features user friendly controls and a digital display.
