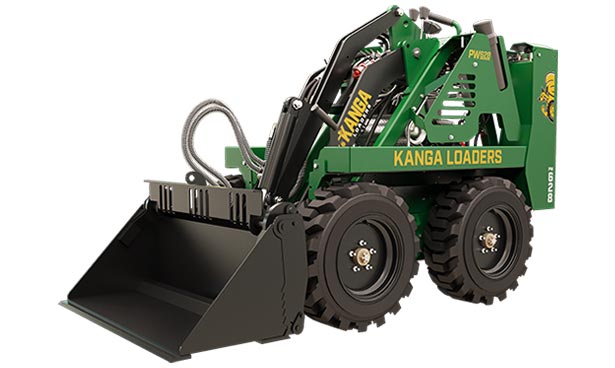

KANGA LOADER
KANGA LOADER
See more by Best Selling Products

KANGA LOADER

(0)
SKU: KL6S

$250.00

Duration: 24 Hours
In stock

Overview

  • LOADER MODEL: DW625 (Wheel)
  • ENGINE: Kubota D902 Diesel
  • POWER RATING: 17.5kW
  • TRAVEL SPEED: 7km/h
  • SYSTEM PRESSURE: 220bar
  • FUEL CAPACITY: 50L
  • COOLING: Water cooled
  • OVERALL WIDTH: 1030mm
  • MAXIMUM OPERATING HEIGHT WITH BUCKET: 2510mm
  • MAXIMUM BUCKET ROLL-BACK: 30°
  • GROUND CLEARANCE: 185mm
  • TIPPING LOAD: 479kg
  • RATED OPERATING CAPACITY (ROC): 239kg

With its independent 4-wheel high torque drive system, the 6 Series DW625 is perfect for any terrain. Coupled with huge 23″ tyres, and a generous 185mm ground clearance, it will take you through the most undulating conditions, offering faster ground speed, and higher puncture resistance. To help cope with harsh conditions, Kanga’s DW625 mini loader also comes fitted with a powerful Kubota diesel engine, and heavy duty two-stage 5″ Donaldson air cleaner. Due to their versatility, and broad range of attachment availability, our mini loaders have proven popular for rental yards and general contractors.

ATTACHMENTS
BUCKET DRIVER AUGER DRIVER



AUGER DRIVER DIMENSIONS
DIAMETER LENGTH WEIGHT
150mm / 6” 1070mm / 42” 12kg / 28lbs
250mm / 10” 1070mm / 42” 19kg / 42lbs
300mm / 12” 1070mm / 42” 25kg / 55lbs
350mm / 14” 1070mm / 42” 26kg / 57lbs
450mm / 18” 1070mm / 42” 38kg / 84lbs



BUCKET DRIVER DIMENSIONS
Standard bucket capacity (heaped / struck volume) 0.12 m3 / 0.09 m3 (4.24 cu ft / 3.21 cu ft)
Bucket reach at 40 Degree (arms up)
410 mm
Bucket maximum reach (arms level - horizontal) 1010 mm
Dump height Std. bucket  1120 mm
Dump height 4in1 bucket 1855 mm
Bucket width 1070 mm
Bucket maximum rollback 30°
Bucket maximum dump angle  60°
Description

With its independent 4-wheel high torque drive system, the 6 Series DW625 is perfect for any terrain. Coupled with huge 23″ tyres, and a generous 185mm ground clearance, it will take you through the most undulating conditions, offering faster ground speed, and higher puncture resistance. To help cope with harsh conditions, Kanga’s DW625 mini loader also comes fitted with a powerful Kubota diesel engine, and heavy duty two-stage 5″ Donaldson air cleaner. Due to their versatility, and broad range of attachment availability, our mini loaders have proven popular for rental yards and general contractors.

Additional Information

ATTACHMENTS
BUCKET DRIVER AUGER DRIVER



AUGER DRIVER DIMENSIONS
DIAMETER LENGTH WEIGHT
150mm / 6” 1070mm / 42” 12kg / 28lbs
250mm / 10” 1070mm / 42” 19kg / 42lbs
300mm / 12” 1070mm / 42” 25kg / 55lbs
350mm / 14” 1070mm / 42” 26kg / 57lbs
450mm / 18” 1070mm / 42” 38kg / 84lbs



BUCKET DRIVER DIMENSIONS
Standard bucket capacity (heaped / struck volume) 0.12 m3 / 0.09 m3 (4.24 cu ft / 3.21 cu ft)
Bucket reach at 40 Degree (arms up)
410 mm
Bucket maximum reach (arms level - horizontal) 1010 mm
Dump height Std. bucket  1120 mm
Dump height 4in1 bucket 1855 mm
Bucket width 1070 mm
Bucket maximum rollback 30°
Bucket maximum dump angle  60°
