Door Hinges

	__ __
Description	Description - __
Rating	Rating - __
Vendor	Vendor - __
Color	Color - __
	View full details

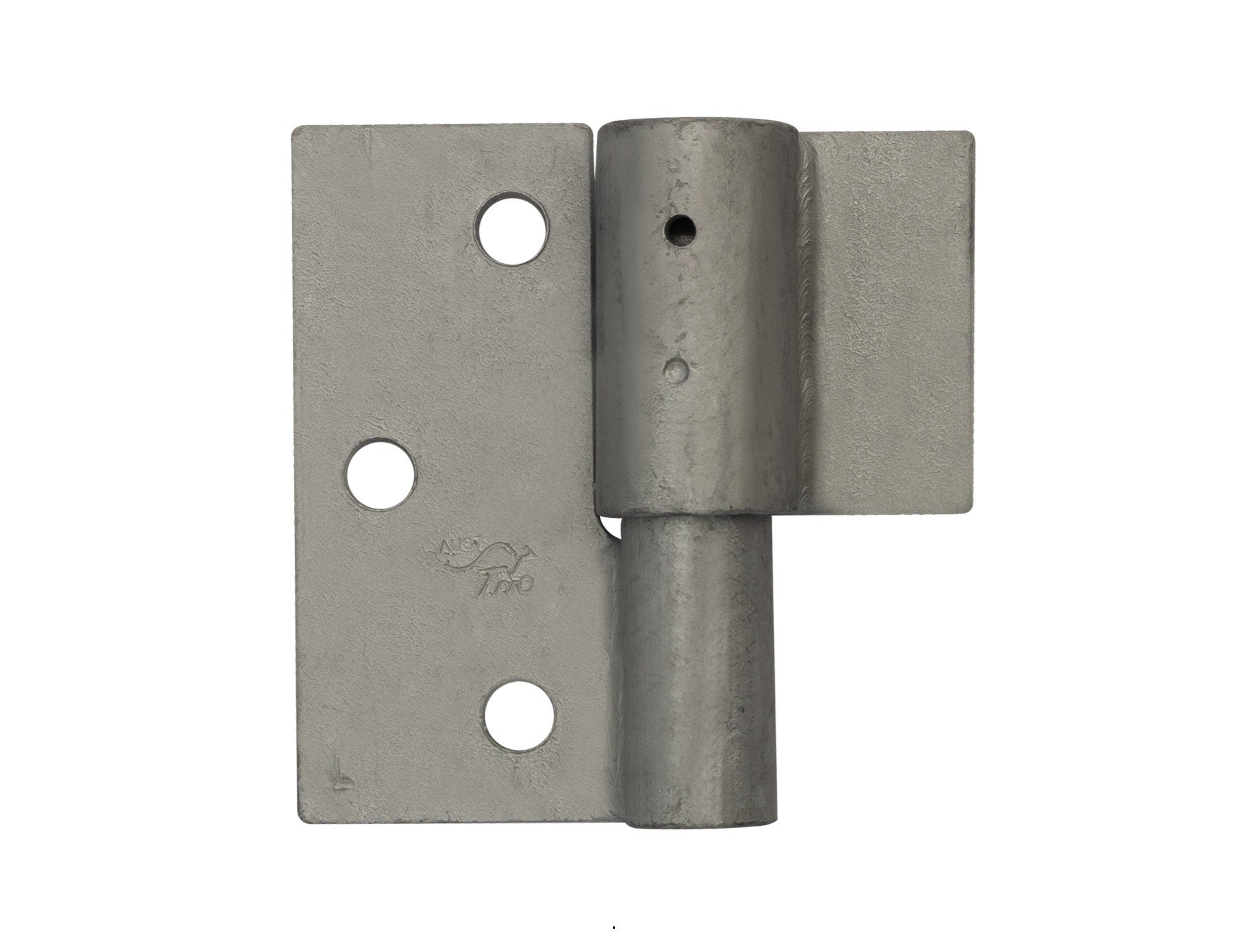

Trio Australia Gate Hinge Tim/Stl Gv Lh 88X86X4.0 BT2100LHGV

(0)

$27.50

In stock

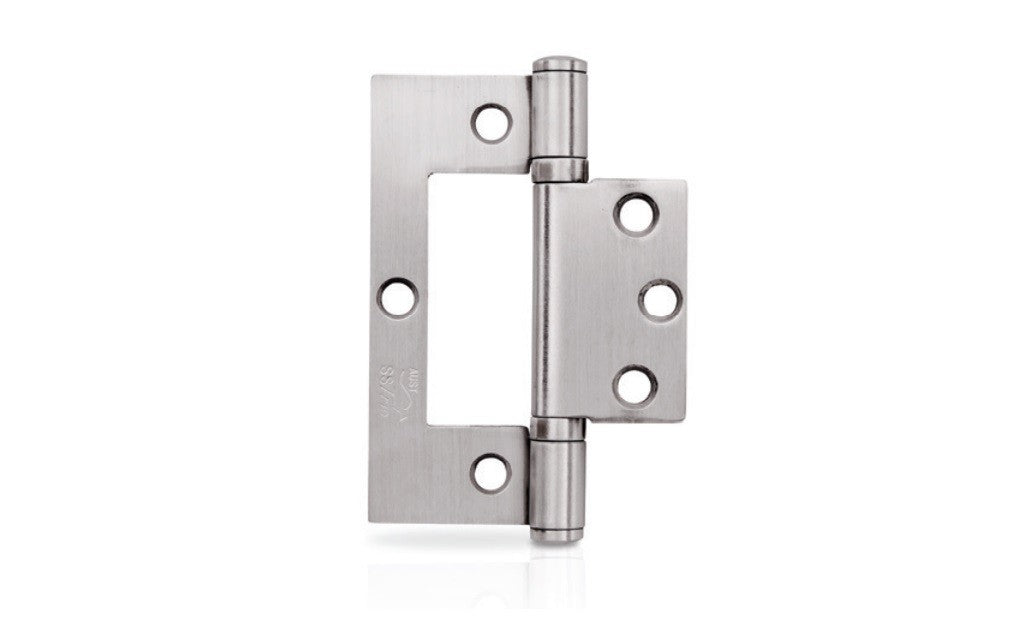

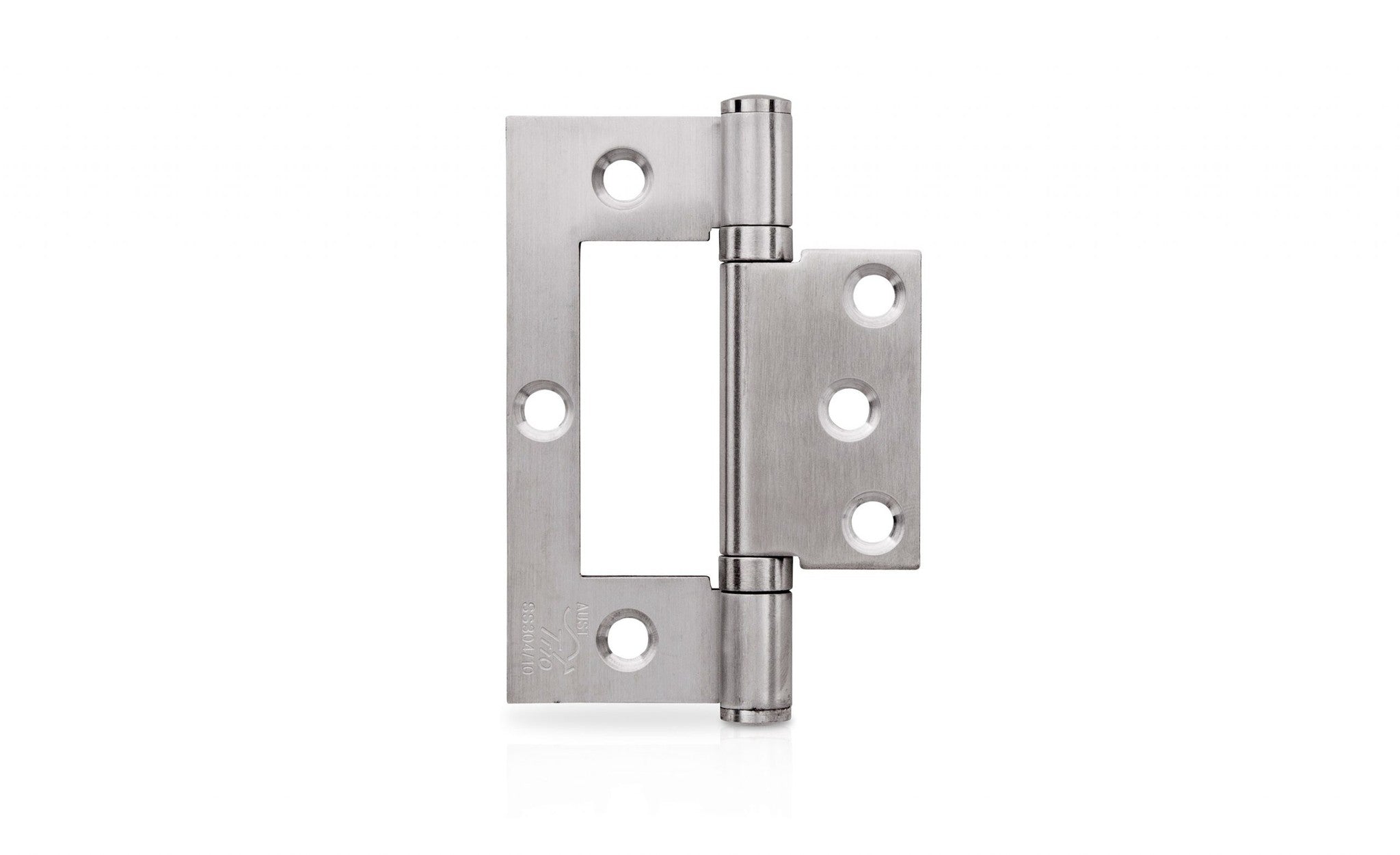

Trio Australia Hirline 100x70x2.5 A/F Fp Ss R3-170ASS

(0)

$17.23

In stock

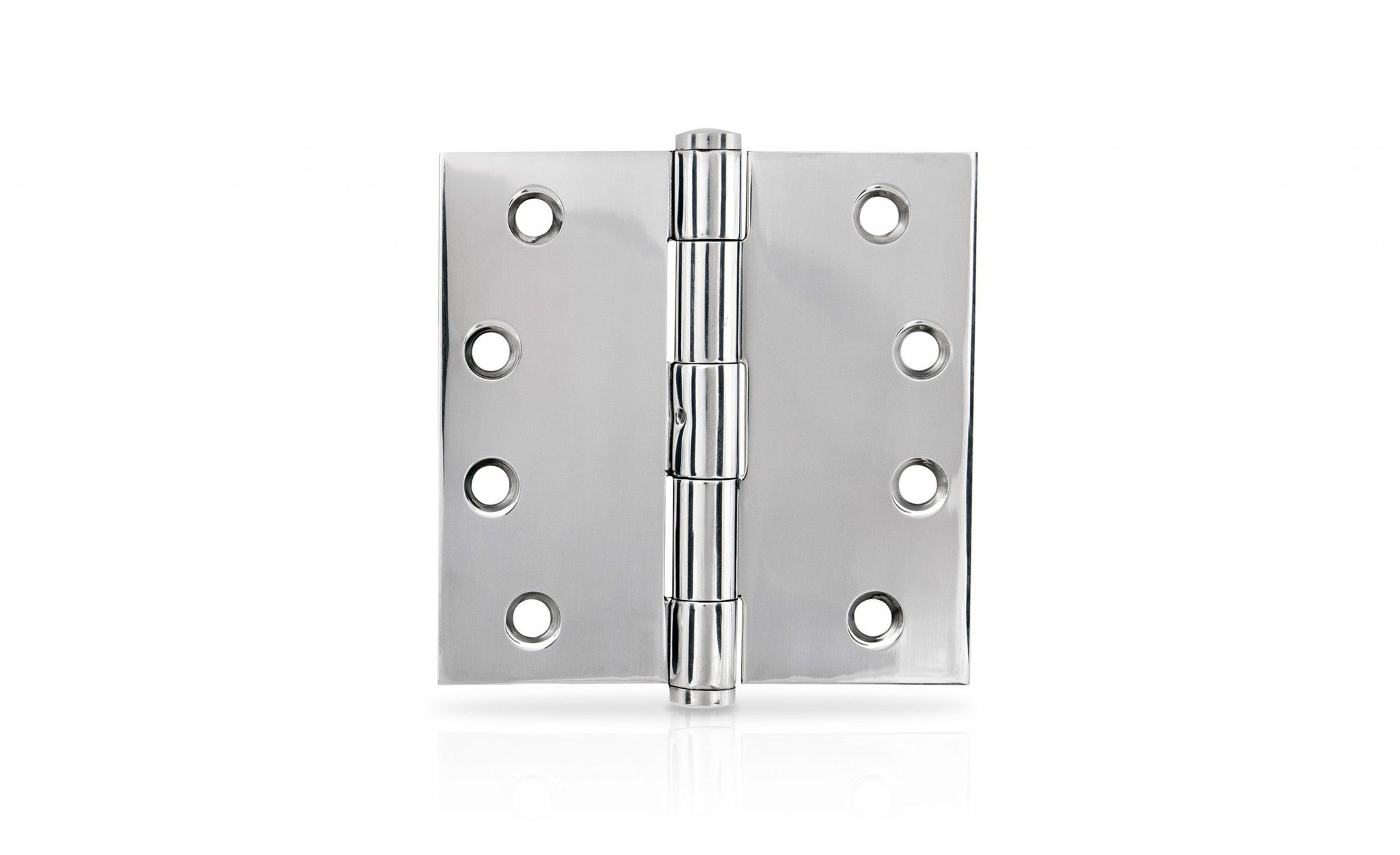

Trio Australia Butt 100x100x2.5 Bt Fp 304Ss R1-1100F

(0)

$17.60

In stock

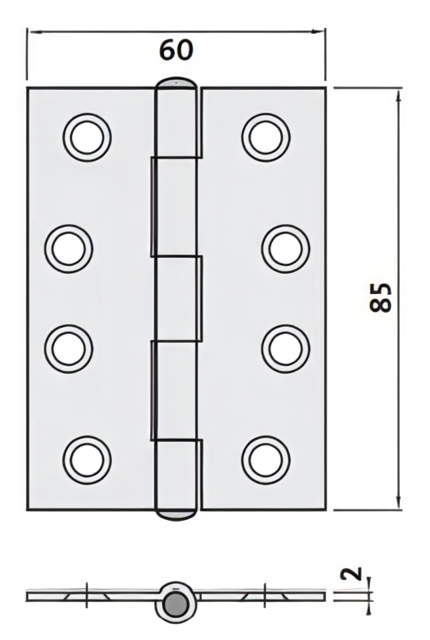

Trio Australia Butt 85x60x2.0 Lp Ss R1-T8520L

(0)

$10.19

In stock

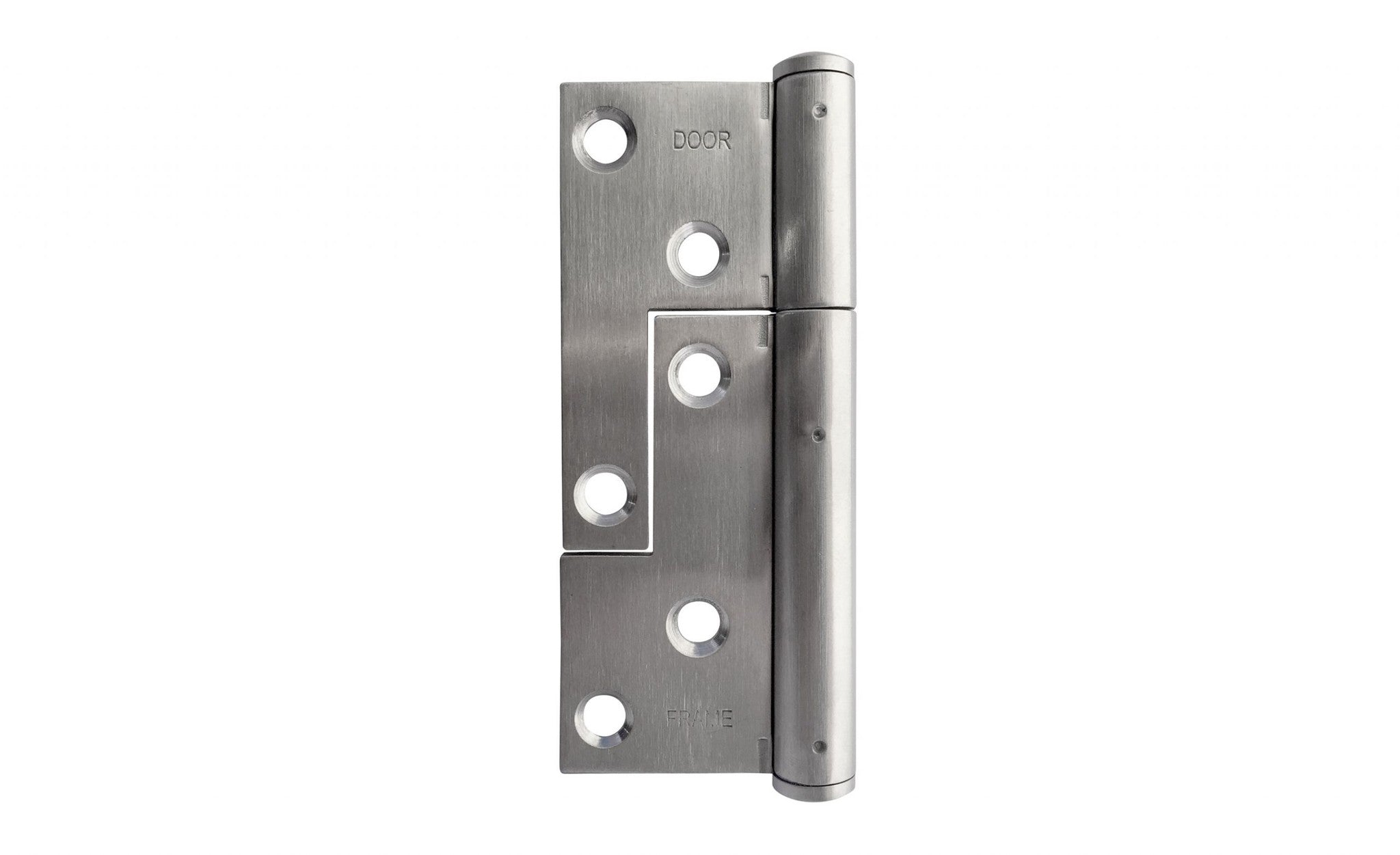

Trio Australia Lift Off Universal 100X74X3.0MM Ss R1-WLO7165

(0)

$20.33

In stock

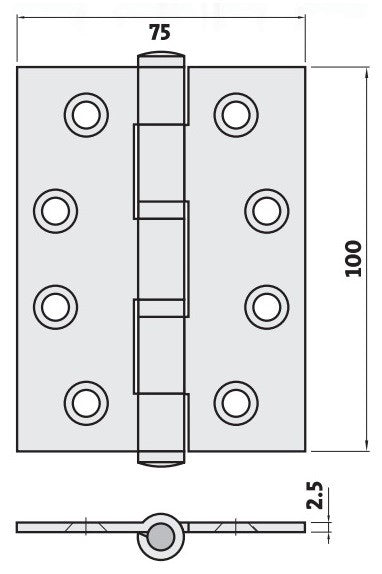

Trio Australia Butt 100x75x2.5 Fp Ps R1-175FPS

(0)

$18.81

In stock

Trio Australia Butt 100x75x2.5 Lp Pss R1-175LPS

(0)

$18.81

In stock

Trio Australia Butt 100x100x2.5 Bt Lp 304Ss R1-1100L

(0)

$17.60

In stock

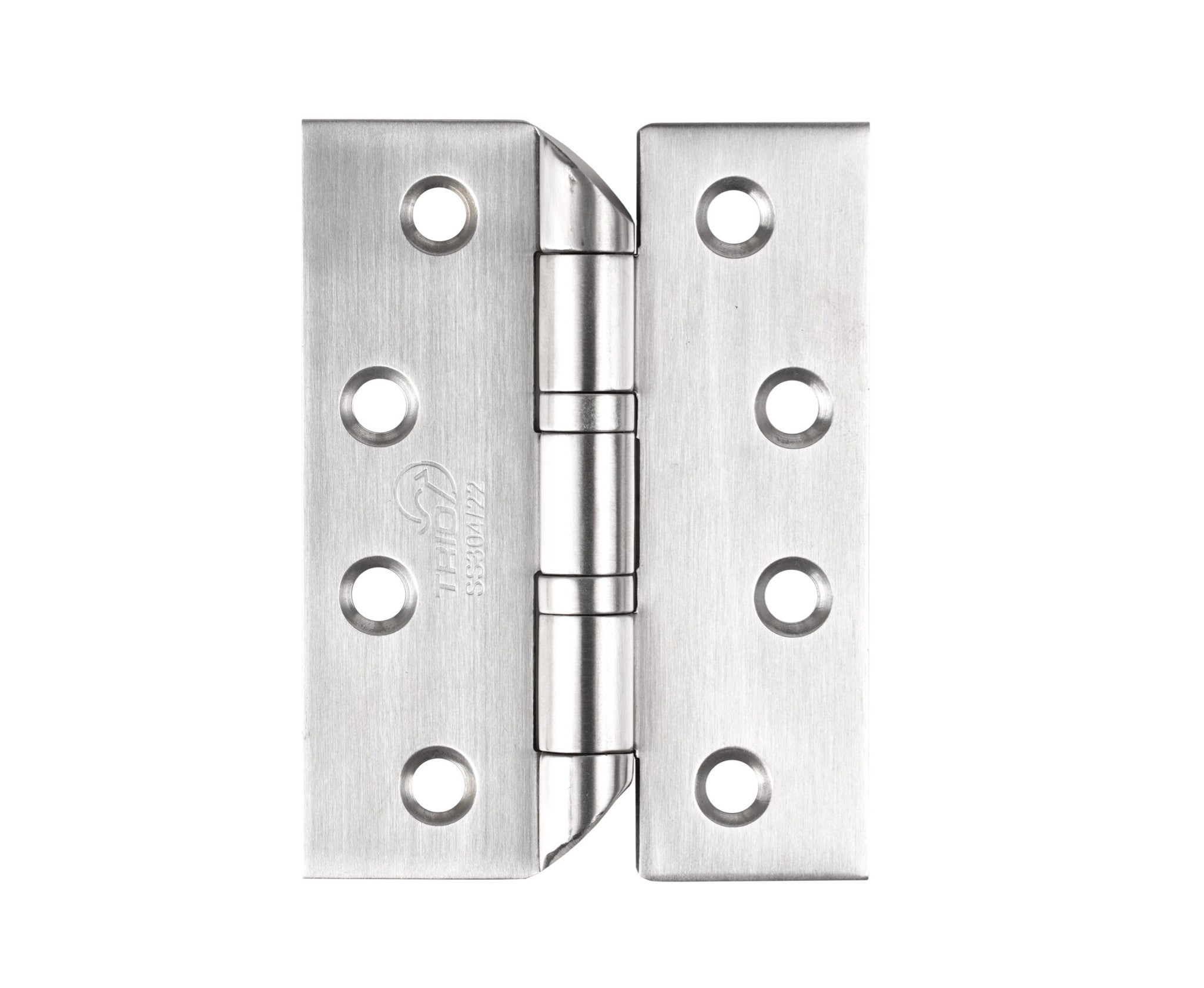

Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF

Trio Australia Butt 100x75x2.5 Bt Fp 304Ss Bb R1-175BBF

(0)

$16.94

In stock

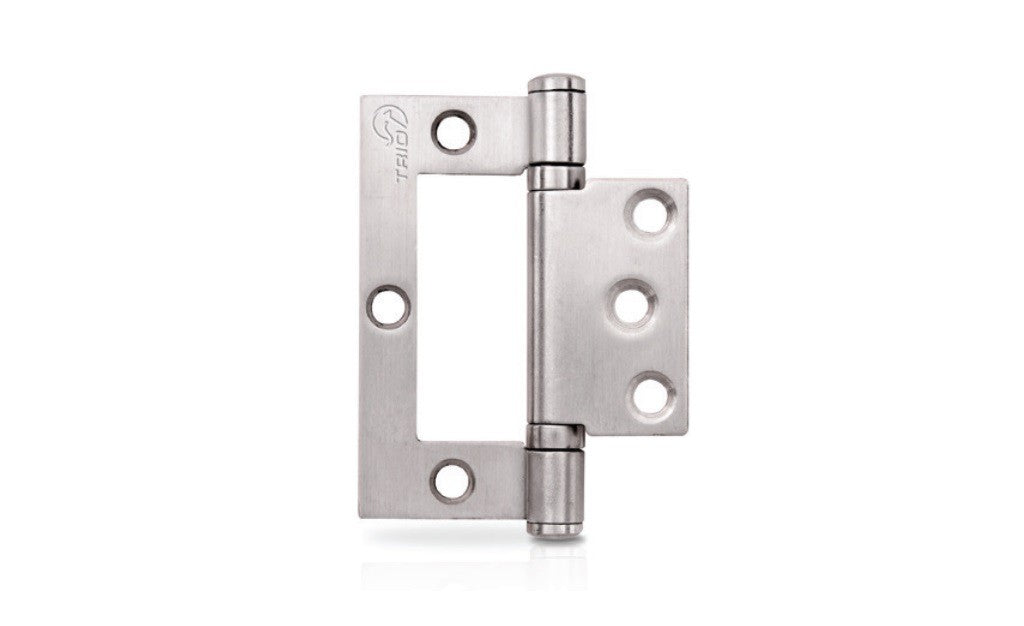

Trio Australia Hirline 100x70x2.5 T/F Fp Ss R3-170TSS

(0)

$11.00

In stock

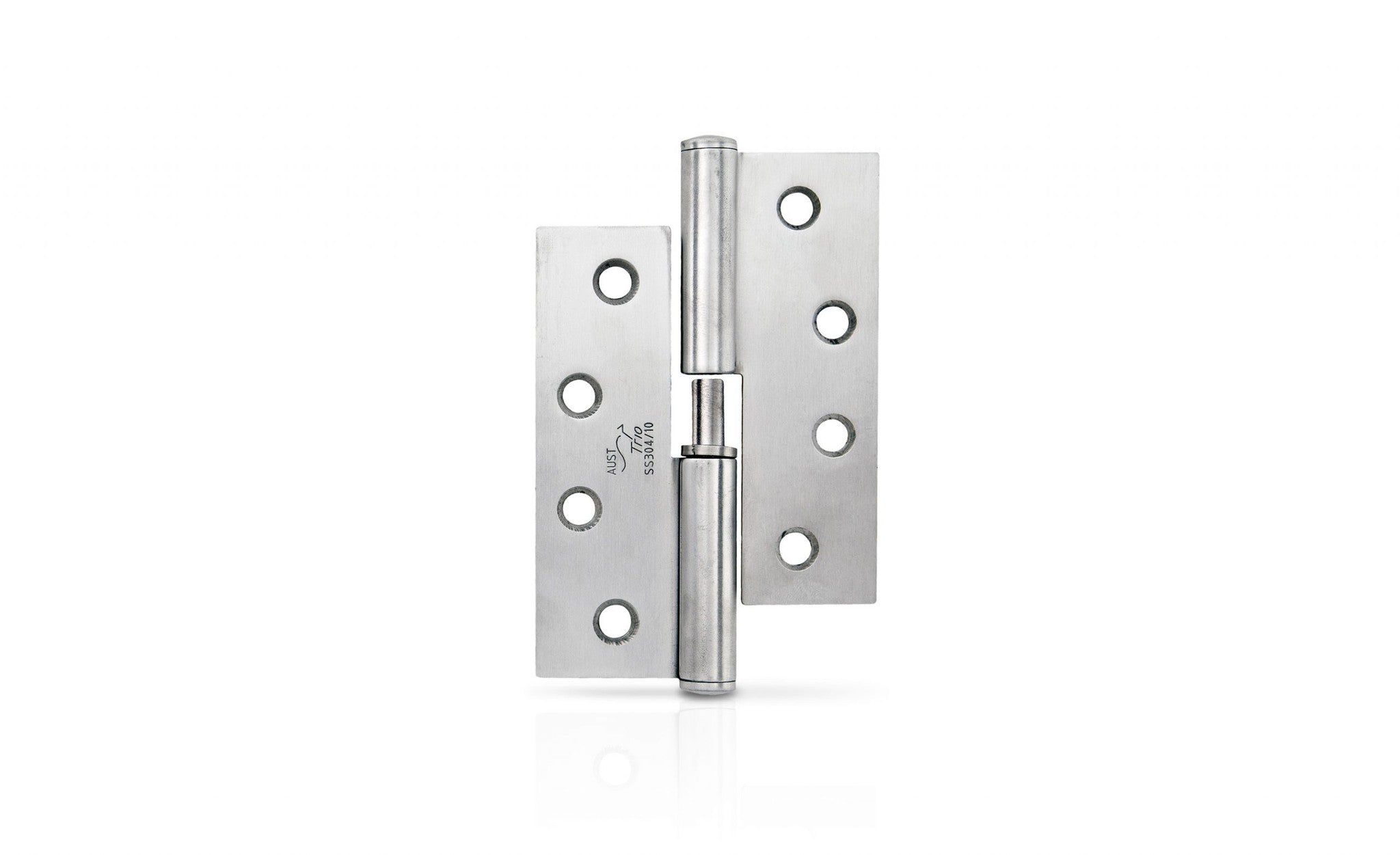

Trio Australia Butt 100x75x2.5 Lp 304Ss R1-175L

(0)

$12.52

In stock

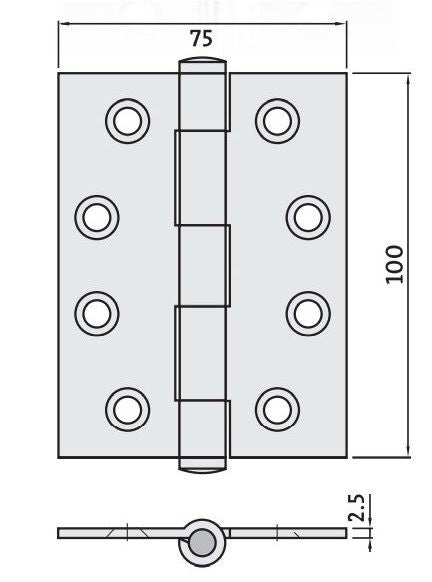

Trio Australia Butt 100x75x2.5 Fp 304Ss R1-175F

Trio Australia Butt 100x75x2.5 Fp 304Ss R1-175F

(0)

$12.52

In stock

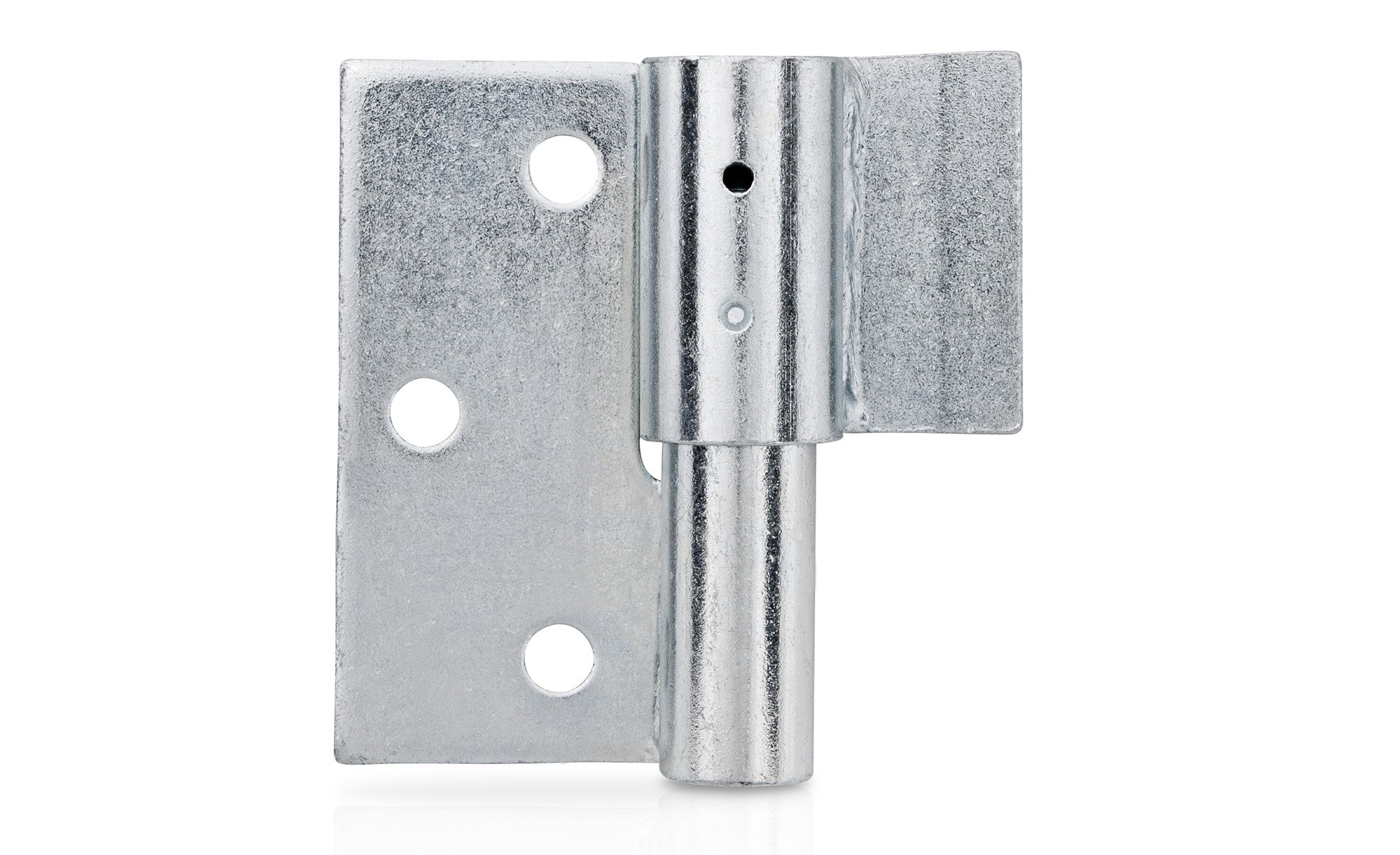

Trio Australia Gate Hinge Timber/Steel Rh 88X86X4.0 BT2100RHZP

(0)

$25.30

In stock

Lemaar Black 100 X 75 X 2.5mm Fixed Pin Flat Tip Hinge

Lemaar Black 100 X 75 X 2.5mm Fixed Pin Flat Tip Hinge

(0)

$8.75

The Lemaar 100 x 75 x 2.5mm Fixed Pin Flat Tip Hinge is suitable for most door types and is easy to install. Part of the Lemaar complete solution range with matching designs in door handles and the same finish across door hardware accessories.

Features

Suitable for most door types
Fixed pin, flat tip
Fire rated
Easy to install
Part of the Lemaar complete solution range

Specifications

Dimensions
Finish	Black
Size	100 x 75 x 2.5mm
Material	Steel
Fire Rated	Yes
DDA Compliant	No
Product Weight (kg)	0.258

In stock

Lemaar Satin Chrome 100 X 75 X 2.5mm Fixed Pin Flat Tip Hinge

Lemaar Satin Chrome 100 X 75 X 2.5mm Fixed Pin Flat Tip Hinge

(0)

$8.94

The Lemaar 100 x 75 x 2.5mm Fixed Pin Flat Tip Hinge is suitable for most door types and is easy to install. Part of the Lemaar complete solution range with matching designs in door handles and the same finish across door hardware accessories.

Features

Suitable for most door types
Fixed pin, flat tip
Fire rated
Easy to install
Part of the Lemaar complete solution range

Specifications

Dimensions
Finish	Satin Chrome
Size	100 x 75 x 2.5mm
Material	Steel
Fire Rated	Yes
DDA Compliant	No
Product Weight (kg)	0.25

In stock

Variant	Left hand, pair
Finish	Galvanised (GV)
Size	88 x 86 x 4mm
Range	REVIVE T2100 Timber to Steel
Overall size	88 x 86 x 4mm
Post leaf	60mm wide x 88mm high
Gate leaf	48 x 48mm
Material thickness	4mm
Material	Steel – grade not published
Pack	Retail pack (RPk), supplied as a pair
Handing	Left hand and right hand are separate SKUs
Load rating	Not published
Dimensions recorded	88 x 86 x 4 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Weight	Trio does not publish a weight for this product. Confirmed absent from the product page and every relevant Trio catalogue PDF.
Barcode / EAN	9328879104195

Variant	Aluminium fix
Finish	Satin Stainless Steel (SSS)
Size	100 x 70 x 2.5mm
Fix type	Aluminium Fix (A/F)
Pack quantities	20 per inner / 80 per outer
Range	REVIVE R3 Architectural Quick Fit
Hinge type	Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Material	304 stainless steel
Bearing	Ball bearing
Code legend	F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack	Trade Pack (TPk), 20 per inner / 80 per outer
Door weight rating	Not published
Weight / packed dimensions	Not published
Dimensions recorded	100 x 70 x 2.5 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN	9328879115429

Variant	Fixed pin
Finish	Satin Stainless Steel (SSS)
Size	100 x 100 x 2.5mm
Pin type	Fixed pin (FP)
Pack quantities	20 per inner / 80 per outer
Range	REVIVE R1 Architectural Butt Hinge
Hinge type	Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material	304 stainless steel
Code legend	F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack	Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Screws	Included – Trio lists these codes under “Trade Packs with Screws”. The same hinge without screws is a different code.
Recommended screw	10 gauge x 30mm
Door weight rating	Not published
Weight / packed dimensions	Not published
Dimensions recorded	100 x 100 x 2.5 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN	9328879115382

Variant	Loose pin
Finish	Satin Stainless Steel (SSS)
Size	85 x 60 x 2.0mm
Pin type	Loose pin (LP)
Material grade	Not published for this code. Trio prints “304 stainless steel” only against its 100x75 and 100x100 architectural rows – do not assume 304 here.
Pack quantities	Not published
Screws	Not published
Range	REVIVE R1 Architectural Butt Hinge
Hinge type	Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material	304 stainless steel
Code legend	F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack	Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Recommended screw	10 gauge x 30mm
Door weight rating	Not published
Weight / packed dimensions	Not published
Dimensions recorded	85 x 60 x 2.0 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN	9328879113876

Variant	Universal, non-handed
Finish	Satin Stainless Steel (SSS)
Size	100 x 43 x 3.0mm
Size note	Size discrepancy. Your item name gives 100 x 74 x 3mm, but Trio publishes 100 x 43 x 3.0mm in both its description string and its Specifications block for this code. Trio's stated convention is that sizes are “measured as the overall width laying down flat”, and 43mm reads as a single-leaf rather than a flat-open measurement – so one of the two figures is a Trio data error. Trio's published figure is used here; please confirm with Trio.
Material grade	Not published
Pack quantities	Not published
Range	REVIVE Universal Lift Off
Pin type	Lift off
Handing	Universal / non-handed
Material thickness	3.0mm
Code legend	F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack	Trade Pack
Door weight rating	Not published
Weight / packed dimensions	Not published
Dimensions recorded	100 x 43 x 3.0 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN	9328879113845

Product comparison

Door Hinges

Door Hinges

Need help

Shop by Category

Quick Links

Terms & Conditions

Download A Class App

Variant	Fixed pin, ball bearing
Finish	Satin Stainless Steel (SSS)
Size	100 x 75 x 2.5mm
Pin type	Fixed pin (FP)
Pack quantities	20 per inner / 80 per outer
Range	REVIVE R1 Architectural Butt Hinge, Ball Bearing
Hinge type	Trio's definition: “Architectural Butt Hinge – These hinges need to be rebated and used to hang large or heavy doors. Suitable for residential and commercial use.”
Material	304 stainless steel
Bearing	Ball bearing
Code legend	F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack	Trade Pack (TPk) with screws, 20 per inner / 80 per outer
Screws	Included
Recommended screw	10 gauge x 30mm
Door weight rating	Not published
Weight / packed dimensions	Not published
Dimensions recorded	100 x 75 x 2.5 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN	9328879040042

Variant	Timber fix
Finish	Satin Stainless Steel (SSS)
Size	100 x 70 x 2.5mm
Fix type	Timber Fix (T/F)
Pack quantities	20 per inner / 80 per outer
Range	REVIVE R3 Architectural Quick Fit
Hinge type	Trio's definition: “Hirline Hinge (sometimes referred to as Quick Fix Hinge or Non Mortice Hinge or centre pin). Most suitable for hanging light weight doors. Easy to fit as they do not require rebating.” The leaves nest around a central pin so the hinge sits in the door gap with no rebate to cut.
Material	304 stainless steel
Bearing	Ball bearing
Code legend	F / FP = Fixed Pin, L / LP = Loose Pin, LO = Lift Off, BB = Ball Bearing, LH / RH = Left / Right Hand, PSS = Polished Stainless Steel, SSS = Satin Stainless Steel, T/F = Timber Fix, A/F = Aluminium Fix.
Pack	Trade Pack (TPk), 20 per inner / 80 per outer
Door weight rating	Not published
Weight / packed dimensions	Not published
Dimensions recorded	100 x 70 x 2.5 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Barcode / EAN	9328879115436

Variant	Right hand, pair
Finish	Zinc Plated (ZP)
Size	88 x 86 x 4mm
Range	REVIVE T2100 Timber to Steel
Overall size	88 x 86 x 4mm
Post leaf	60mm wide x 88mm high
Gate leaf	48 x 48mm
Material thickness	4mm
Material	Steel – grade not published
Pack	Retail pack (RPk), supplied as a pair
Handing	Left hand and right hand are separate SKUs
Load rating	Not published
Dimensions recorded	88 x 86 x 4 mm
Dimension basis	Product dimensions as published by Trio. Trio does not publish carton or packed dimensions for any product in this range, so these are the item's own dimensions, not shipping-carton dimensions.
Weight	Trio does not publish a weight for this product. Confirmed absent from the product page and every relevant Trio catalogue PDF.
Barcode / EAN	9328879104164
